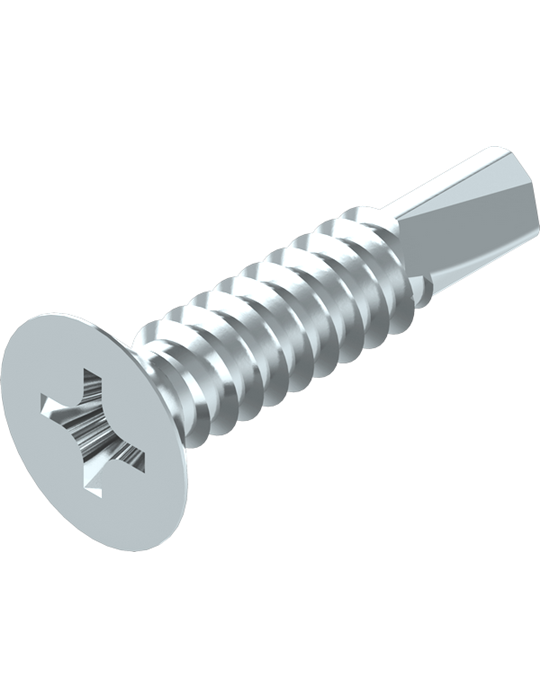

COUNTERSUNK HEAD SCREW 7504O 3.5X19

Self-drilling screws DIN 7504 P(O), zinc-plated steel
Shape: Version P, Version O
DIN: 7504
Screw type: Self-drilling screw
Material: Steel
Quality: 30H
Surface: zinc-plated
Drive type: PH
Thread direction: right-hand direction
Head shape: Countersunk head All characteristics:
Thread-Ø 3.5 mm
D 19 mm
Thread length 12.1 mm
Drive length 2 mm
Drilling range 0.7-2.25 mm
Head height (hK) 2.1 mm
Head-Ø (dK) 7 mm
