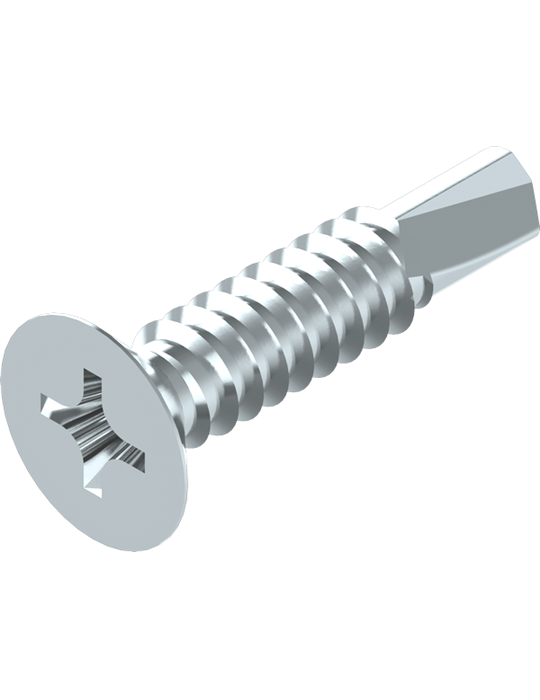

COUNTERSUNK HEAD SCREW 7504O 3.9X16

Self-drilling screws DIN 7504 P(O), zinc-plated steel
Shape: Version P, Version O
DIN: 7504
Screw type: Self-drilling screw
Material: Steel
Quality: 30H
Surface: zinc-plated
Drive type: Phillipps cross recess (PH)
Thread direction: right-hand direction
Head shape: Countersunk head All characteristics
Thread-Ø 3.9 mm
D 16 mm
Thread length 8.8 mm
Drive capacity
Drilling range 0.7-2.4 mm
Head height (hK) 2.35 mm
Head-Ø (dK) 7.5 mm
Drive PH 2
