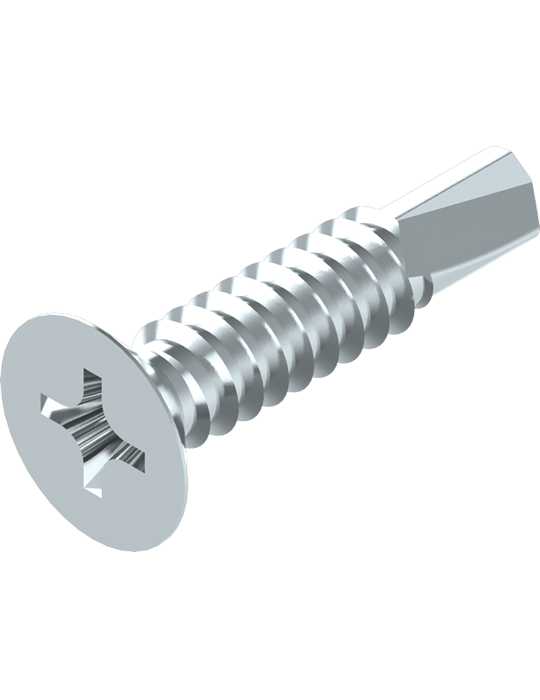

COUNTERSUNK HEAD SCREW 7504O 6.3X50

Self-drilling screws DIN 7504 P(O), zinc-plated steel
Shape: Version P, Version O
DIN: 7504
Screw type: Self-drilling screw
Material: Steel
Strength class: 30H
Surface: zinc-plated
Drive type: Phillipps cross recess (PH)
Thread direction: right-hand direction
Head shape: Countersunk head All features:
Thread-Ø 6.3 mm
D 50 mm
Thread length 38 mm
Drive capacity
Drilling range 2-6 mm
Head height (hK) 3.15 mm
Head-Ø (dK) 12 mm
Drive PH 3
