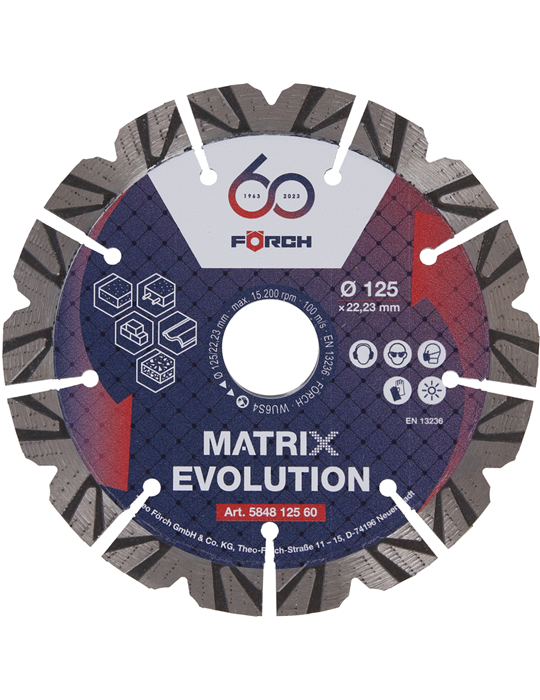

DRP MATRIX EVO 230 60J

Diamond cutting disc MATRIX Evolution
Short tooth technology for extremely consistent cutting performance
Segments with Matrix technology
EN: 13236
Segment attachment: laser welded
Application area: Concrete, reinforced concrete, Granite, Clinker, Exposed aggregate concrete, brick, general construction site material
Max. peripheral speed: 100 m/s All characteristics:
Segment pitch
Outer-Ø 230 mm
Inner-Ø
Bore-Ø 22.23 mm
Max. speed 8300 min⁻¹
No. of segments 15
Segment height 15 mm
Segment thickness 2.6 mm
Side holes No
No. of side holes
Wet cutting allowed No
Dry cutting allowed Yes
